How to Choose and Install the Derwel 15PL76 Professional Loudspeaker for Reliable PA Performance

How to Choose and Install the Derwel 15PL76 Professional Loudspeaker for Reliable PA Performance

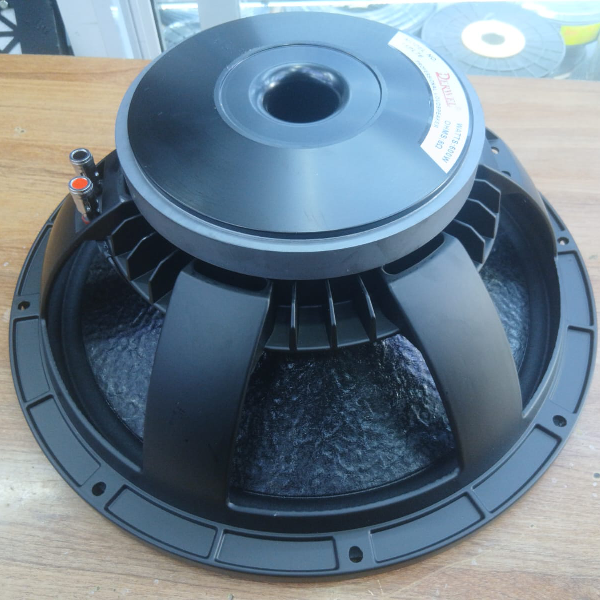

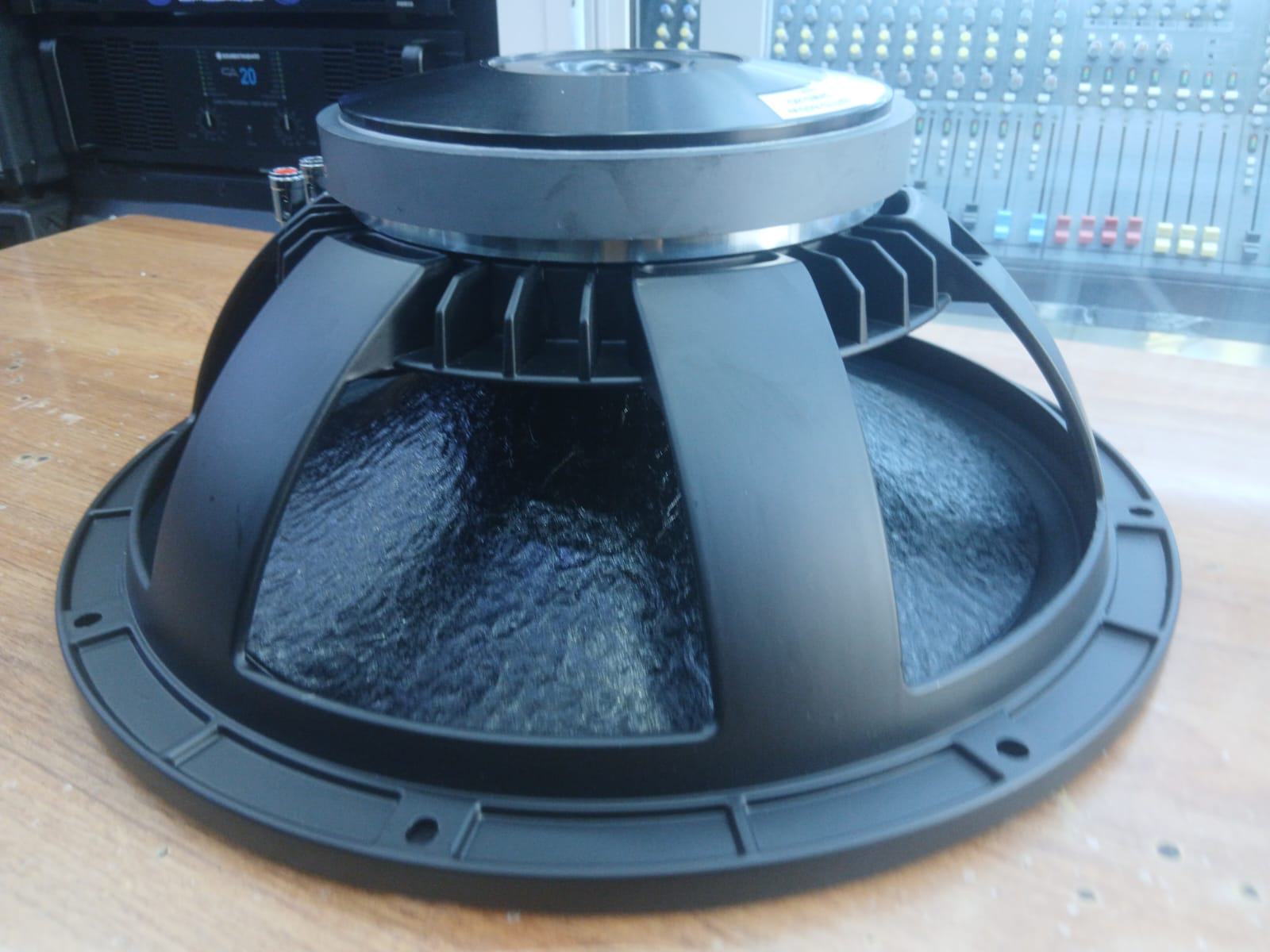

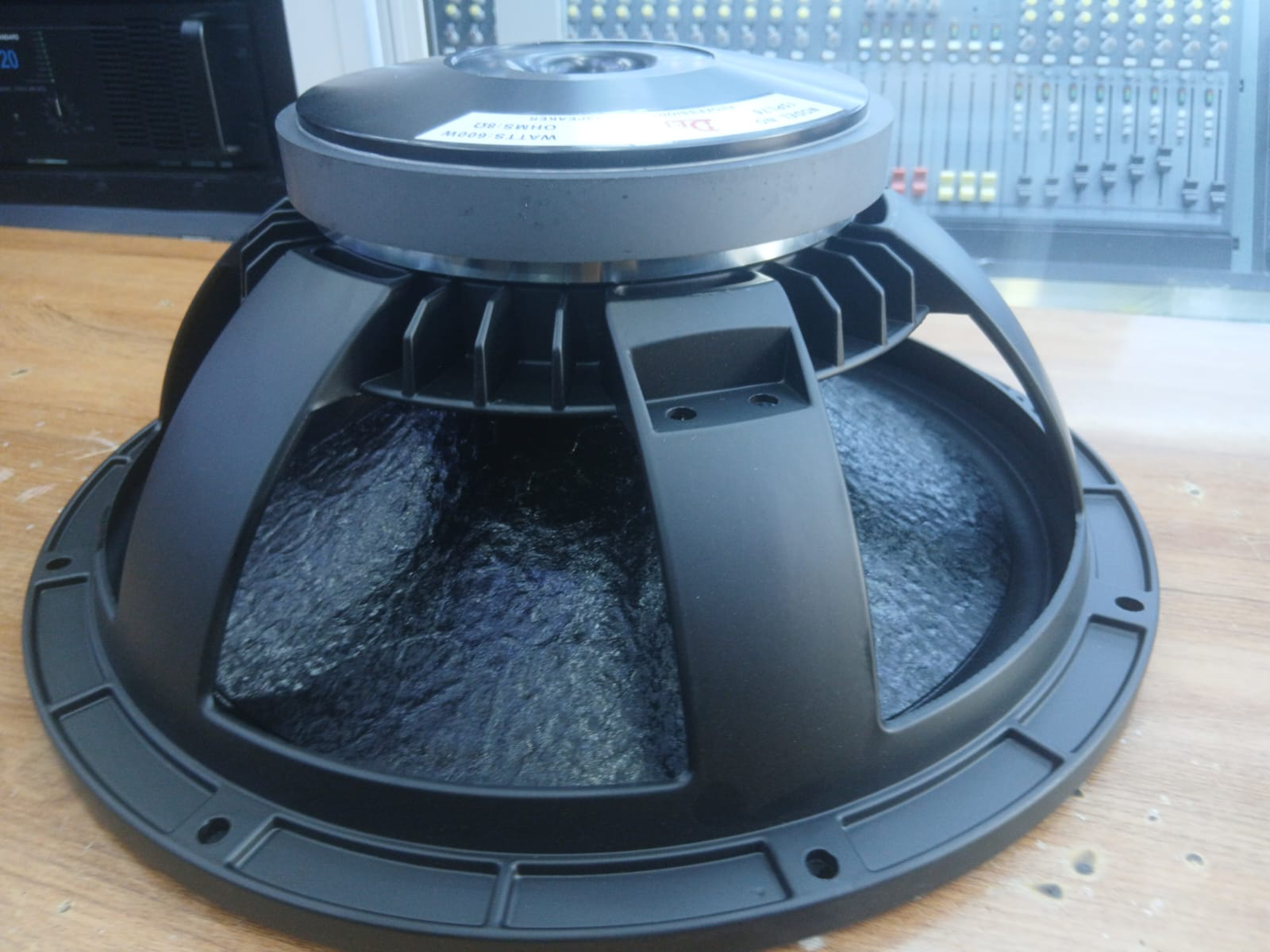

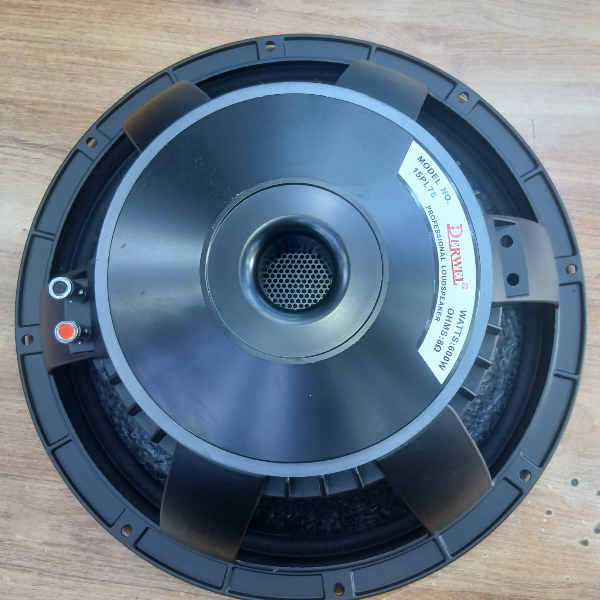

The Derwel 15PL76 Professional Loudspeaker is a practical 15-inch speaker driver for technicians, churches, DJs, schools and event companies looking to repair or build professional PA cabinets. Its 600W rating and 8-ohm impedance make it suitable for compatible full-range speakers, stage monitors and custom loudspeaker projects.

Start by Understanding Your Speaker Cabinet

Before purchasing a replacement driver, inspect the cabinet where the speaker will be installed. Two loudspeakers may both measure 15 inches but still have different mounting patterns, magnet depths, impedance ratings and enclosure requirements. Selecting a driver based only on cone diameter can lead to poor performance or installation problems.

Measure the cabinet cut-out, mounting-hole positions and available internal depth. The magnet assembly must fit comfortably without touching internal bracing, crossover components or cabinet walls. The mounting rim should sit evenly against the front panel to create a secure and airtight fit.

The Derwel 15PL76 Professional Loudspeaker should be installed only in a cabinet that supports its dimensions and intended application. A suitable enclosure allows the driver to reproduce bass and lower-midrange frequencies more efficiently.

Confirm the Impedance Before Installation

The Derwel 15PL76 operates at an 8-ohm impedance. Impedance affects the load presented to the amplifier, especially when several speaker cabinets are connected to the same amplifier channel.

Connecting two 8-ohm speakers in parallel normally creates a 4-ohm load. The amplifier must be stable at that impedance and capable of supplying clean power without overheating or entering protection mode. Incorrect speaker loading can damage the amplifier or reduce the reliability of the entire sound system.

Match the Speaker with the Correct Amplifier

A professional loudspeaker requires an amplifier that delivers clean and controlled power. Using an amplifier with inadequate output may tempt the operator to increase the gain excessively. This can cause clipping, producing a distorted waveform that generates unnecessary heat inside the speaker’s voice coil.

An oversized amplifier can also cause damage when operated carelessly. The best approach is to use a suitable professional amplifier, set the gain structure correctly and monitor signal or clipping indicators during operation.

Avoid assuming that maximum volume always produces better sound. A properly configured system should remain clear, balanced and comfortable even at higher listening levels.

Use the Correct Crossover Configuration

The Derwel 15PL76 can serve as the low and mid-frequency component in a full-range speaker cabinet. To reproduce high frequencies, it should be paired with a compatible compression driver or tweeter and a properly designed crossover network.

The crossover directs low and mid frequencies to the 15-inch woofer while sending high frequencies to the compression driver. Without proper filtering, the woofer may receive unsuitable frequencies, while the high-frequency driver may be exposed to damaging low-frequency energy.

A digital speaker processor can also provide crossover control, limiting, equalisation and delay for larger professional systems. Correct processing protects the equipment and improves sound consistency.

Build or Repair the Cabinet Carefully

The loudspeaker cabinet influences bass response almost as much as the driver itself. A weak enclosure can vibrate, rattle and absorb energy that should be converted into useful sound. Strong construction helps the Derwel 15PL76 deliver tighter bass and cleaner lower-midrange reproduction.

Inspect all cabinet joints, handles, ports, terminals and internal braces. Seal any unwanted air leaks and replace loose screws. The driver should be tightened evenly without applying excessive pressure that could distort the frame.

Custom cabinet builders should calculate the internal volume and port dimensions carefully. Random enclosure measurements may produce weak bass, uncontrolled cone movement or excessive resonance. Professional cabinet design provides more predictable results.

Observe Correct Speaker Polarity

Speaker polarity is important when several cabinets operate together. Reversing the positive and negative wires on one speaker can cause phase cancellation, resulting in weak bass and uneven coverage.

Connect the amplifier’s positive output to the speaker’s positive terminal and the negative output to the negative terminal. Use quality speaker cable with adequate conductor thickness, especially for long cable runs and higher-powered applications.

Where the Derwel 15PL76 Can Be Used

• Church full-range loudspeaker cabinets
• Mobile DJ speaker systems
• Stage monitor enclosures
• School and conference hall PA systems
• Wedding and corporate event systems
• Live band sound reinforcement
• Rental speaker inventory
• Public-address installations
• Speaker cabinet repairs
• Custom loudspeaker construction

Protect the Speaker During Daily Use

Avoid moisture, direct rain and excessive dust because these conditions may damage the cone, suspension and electrical components. Mobile systems should be transported using protective covers and secured properly inside the vehicle.

Listen for early signs of trouble such as rattling, scraping, reduced output or unusual distortion. Addressing a small problem early can prevent complete speaker failure. Periodically inspect the terminals, mounting screws and cabinet seals, particularly when the equipment is used frequently.

Why the Derwel 15PL76 Is a Practical Investment

The Derwel 15PL76 Professional Loudspeaker offers a useful balance of bass response, lower-midrange clarity and manageable cabinet size. It can support music, speech and live instruments, making it suitable for organisations that need one flexible speaker system for several applications.

It is also valuable for technicians repairing professional cabinets. Replacing a damaged woofer can restore an existing speaker at a lower cost than purchasing a complete new system, provided the cabinet, amplifier and crossover are compatible.

Why Buy from Audiocom Kenya?

Audiocom Kenya supplies professional speaker drivers, amplifiers, mixers, microphones, DJ equipment and complete PA systems for churches, schools, musicians, event companies and sound technicians across Kenya.

Our team can help you evaluate basic cabinet compatibility, impedance, amplifier requirements and intended application before purchasing the Derwel 15PL76. This guidance is useful for both replacement projects and new speaker builds.

Final Thoughts

The Derwel 15PL76 Professional Loudspeaker can deliver dependable performance when it is installed in the correct cabinet and paired with suitable amplification. Its 15-inch design, 600W rating and 8-ohm impedance make it a versatile option for PA systems, churches, DJs, schools and professional repair projects.

Careful cabinet matching, correct polarity, proper crossover settings and clean amplifier power are essential for achieving the best results. With responsible operation and regular maintenance, the Derwel 15PL76 can provide reliable sound reproduction for many professional events and installations.
