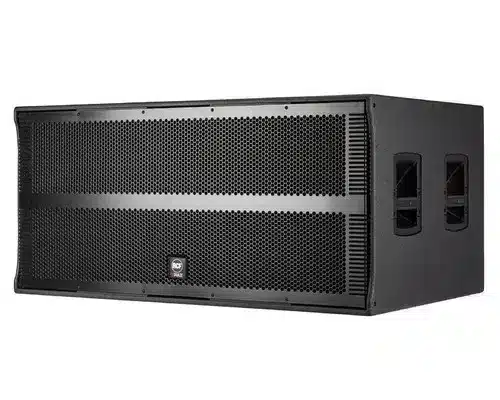

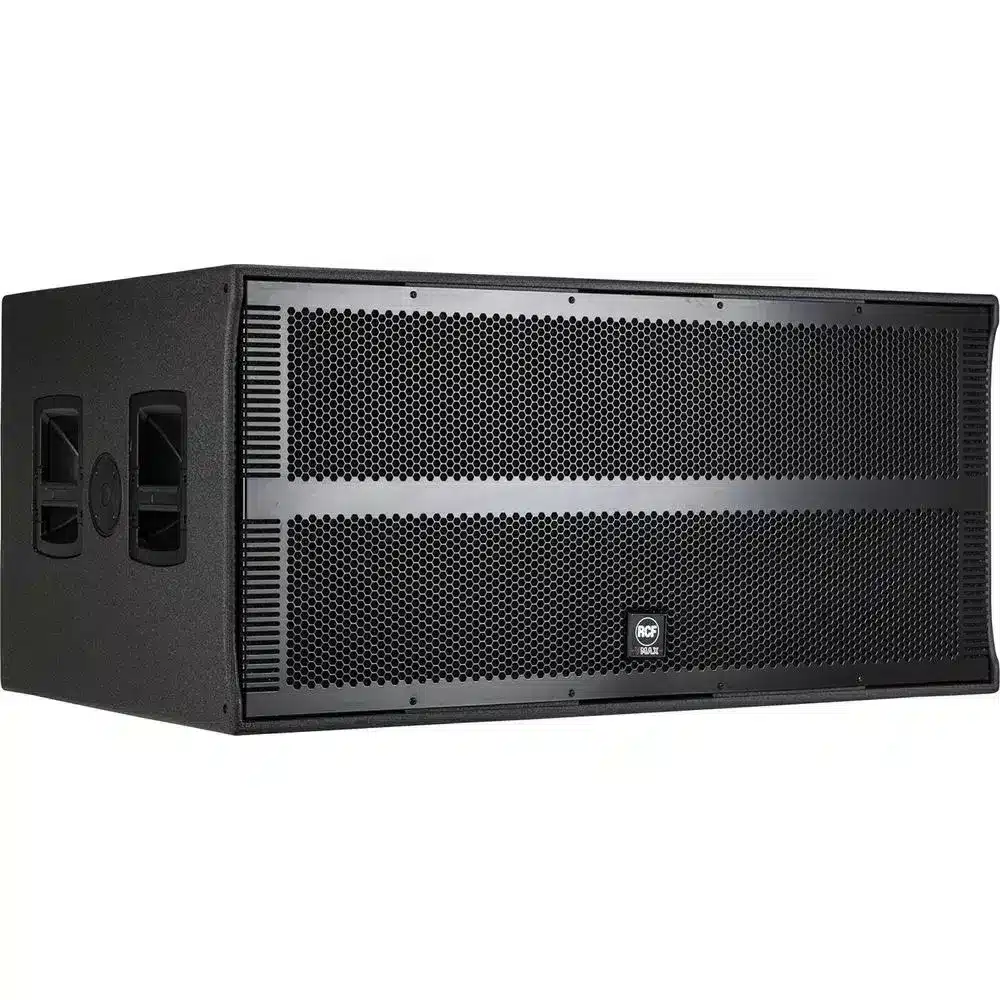

The black RCF V218-S Passive Bass Reflex Subwoofer from RCF is equipped with two neodymium 18″ precision woofers mounted in a front-loaded configuration. Each woofer features massive vented magnets and a 4″ copper voice coil. It is capable of handling up to 3,000W AES power and produces a maximum SPL of 141 dB. The subwoofer’s compact design ensures an efficient acoustic response down to 30 Hz.
RCF V218-S Passive Bass is a very high-output, passive bass-reflex subwoofer. The system is equipped with two advanced 21” RCF precision woofers mounted in a front-loaded configuration. This high power design marks the latest refinements in compact subwoofer design, resulting in a fast and controlled reproduction of the bass frequency range. The two transducers couple to achieve tight and maximized output, while the subwoofer design ensures an efficient acoustic response down to 25Hz. This is ideal for live performance, DJ sets, rental solutions, or more permanent installations.
The RCF V218-S Passive Bass cabinet is constructed using Baltic birch plywood and coated with weather-resistant, textured polyurethane black paint. The front steel grille is epoxy powder coated. The unit can be installed in an either horizontal or vertical configuration. The enclosure features four sides recessed handles and rubber feet.
RCF VMAX Specs
| Frequency Response | 30 to 250 Hz |
| Maximum SPL | 141 dB |
| Sensitivity | 99 dB |
| Nominal Impedance | 4 Ohms |
| Peak Power | 3,000 W Peak: 12,000 W |
| Recommended Amplifier Power | 6,000 W |
| Woofer | 2 x 18″ (45.7 cm), 4″ (10.2 cm) voice coil Nominal Impedance: 8 Ohms Input Power Rating: 2 x 1,500 W AES |
| Input Connector | SpeakON NL4 |
| Cabinet Construction | Material: 0.5″ (15 mm) Baltic birch |
| Mounting Options | Pole mount ready |
| Handles | 4 side |
| Grille | Perforated steel |
| Dimensions (H x W x D) | 22.4 x 47.24 x 29.33″ (56.90 x 120.00 x 74.50 cm) |
| Weight | 172 lb (78 kg) |
