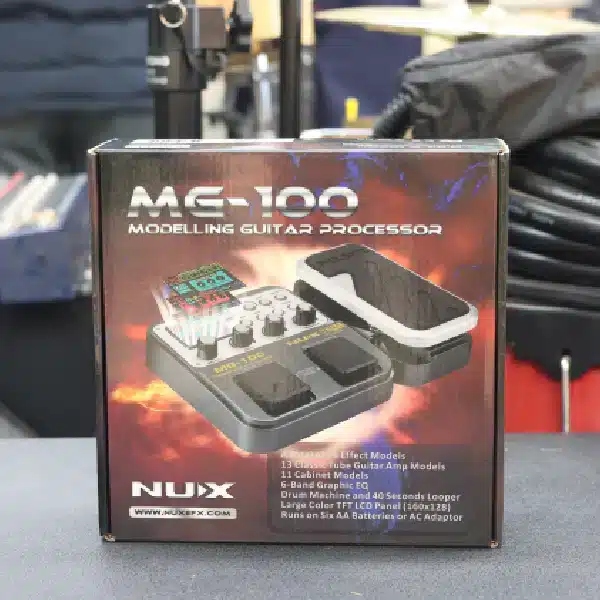

NUX MG100 effects pedal

NUX MG100 effects pedal

Features:
Nux MG-100 Modeling Guitar Processor seamless and quick preset switching.
Built-in drum machine with CD quality PCM sounds.
Up to 40 seconds phrase loop with sound on sound adds more playability.
Tap tempo control for time-based effects and drum machine.
Loop sounds can be played with drum machine’s rhythm beat synchronously.

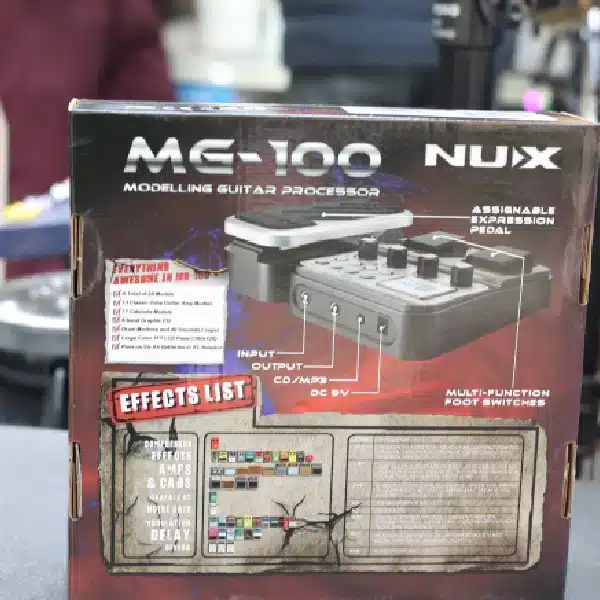

The AUX IN jack makes it easy to practice along with MP3, CDs and other inputs.
The expression pedal lets you adjust the volume or effect parameters in real-time.
Large color TFT LCD panel (160 x128), graphic interface making the overall operation easy and intuitive.
A total of 72 presets, 36 factory + 36 user presets.

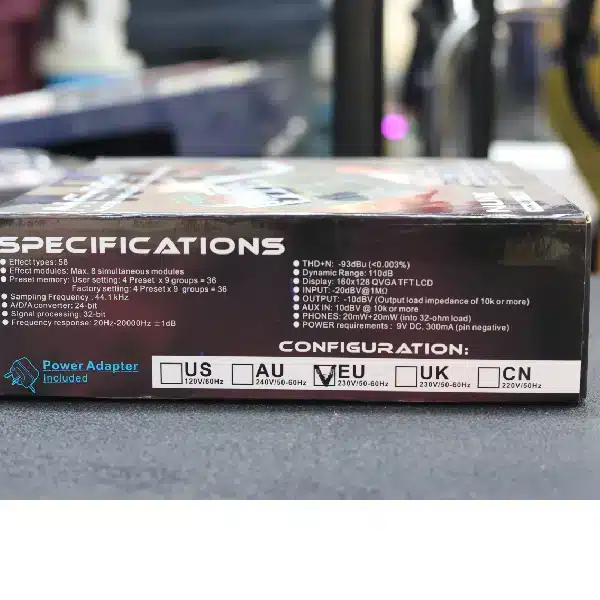

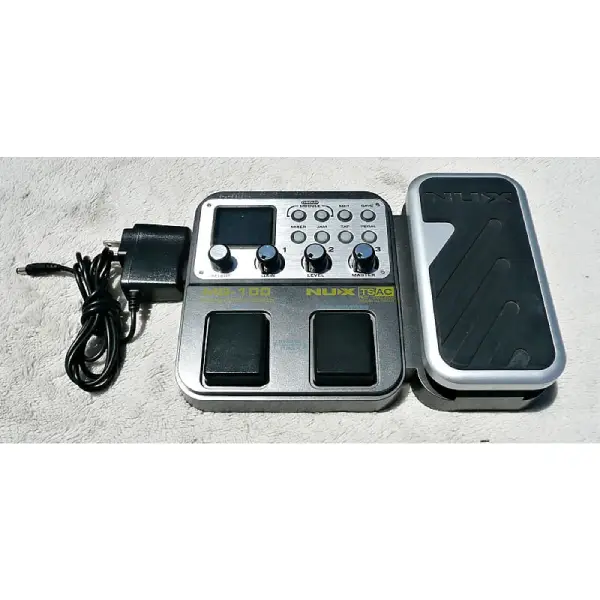

32-bit DSP, high-performance 24Bit 44.1kHz AD/DA converter. Powered by batteries or DC power adapter.

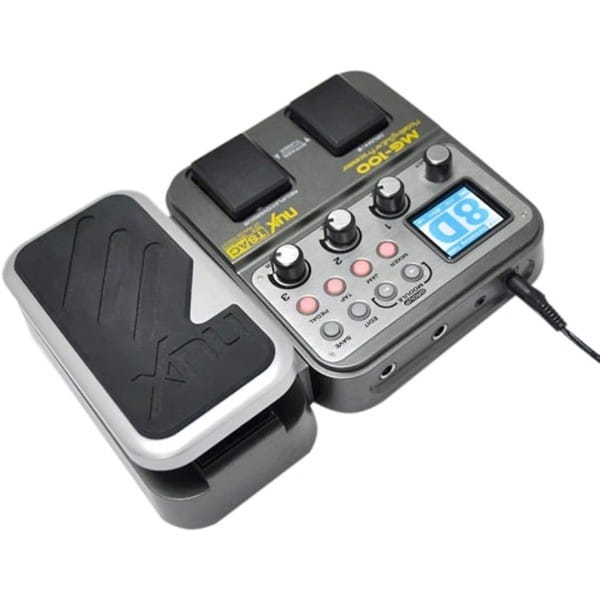

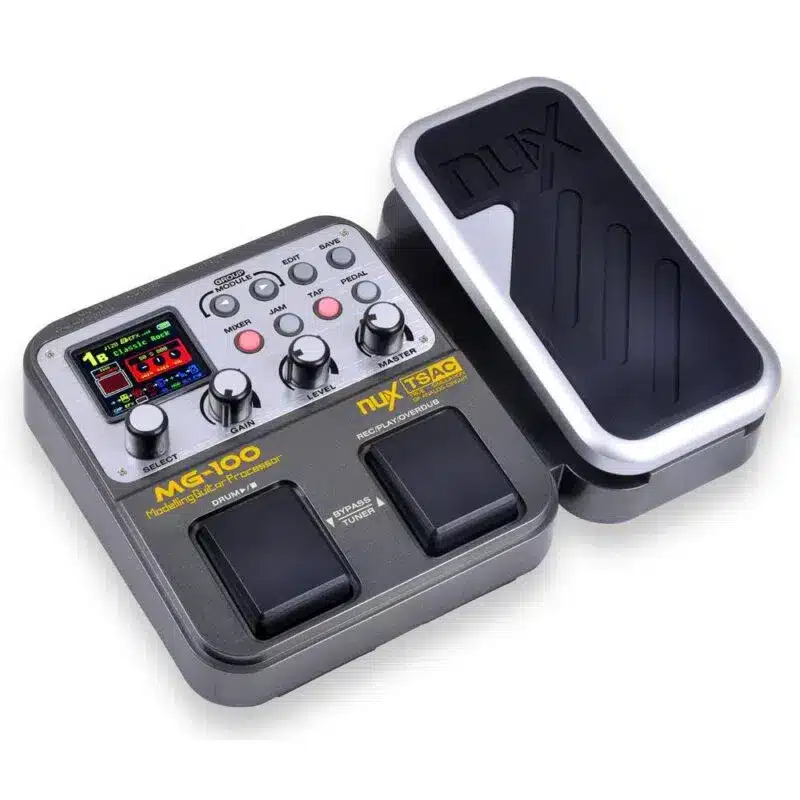

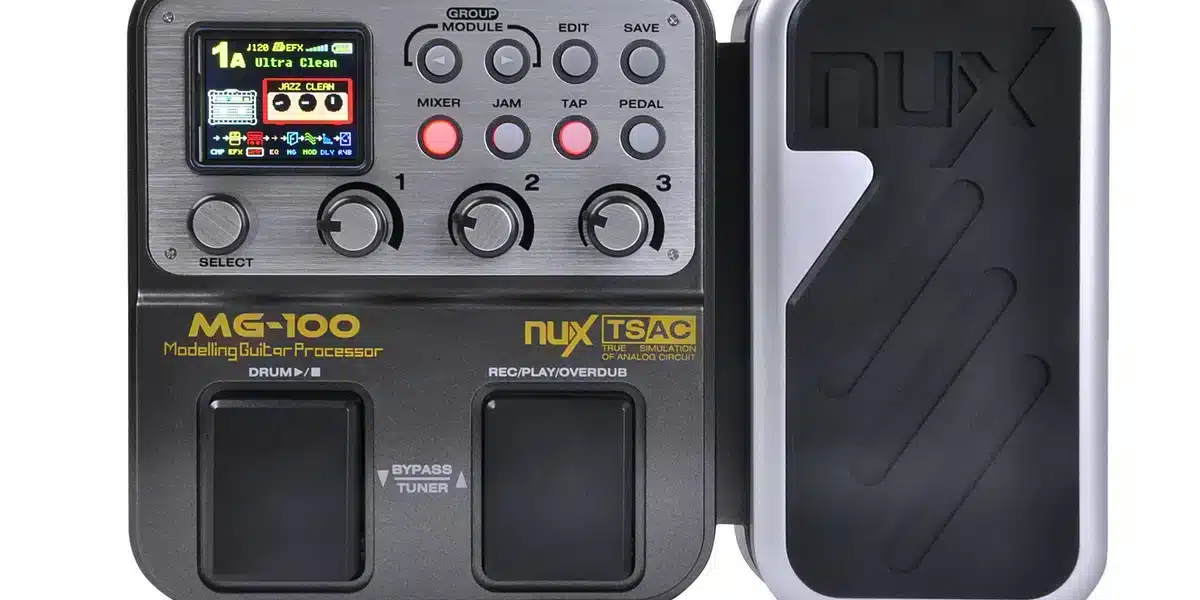

Operations and functions:

1. Preset(footswitches): Select presets;
Right switch: select the next preset up Left switch: select the next preset down Both switch(press simultaneously): enter tuning mode 2.Expression pedal: Control Nux MG-100 Modeling Guitar Processor volume, wah or assigned effect parameter.
3.Module button: Control effect module.4.Save button: Save tone settings that you create by using the panel knobs and pedals.
5.Tap button: Set overall tempo, allow you to sync the delay time to the tempo of the song.
6.Display: Show working status (different modes).7.Edit: Stop save procedure or return to last mode (in Save mode).
8.Jam: Control built-in drum and loop machine (on or off).
9.Mixer: Connect item to a recorder, a hi-fi system,headphones or other audio devices. 10.Select: Choose effects for each module.
11.Knobs 1-3: Adjust parameter of the effect in the module.
12.Pedal: Select module to assign to the expression pedal.

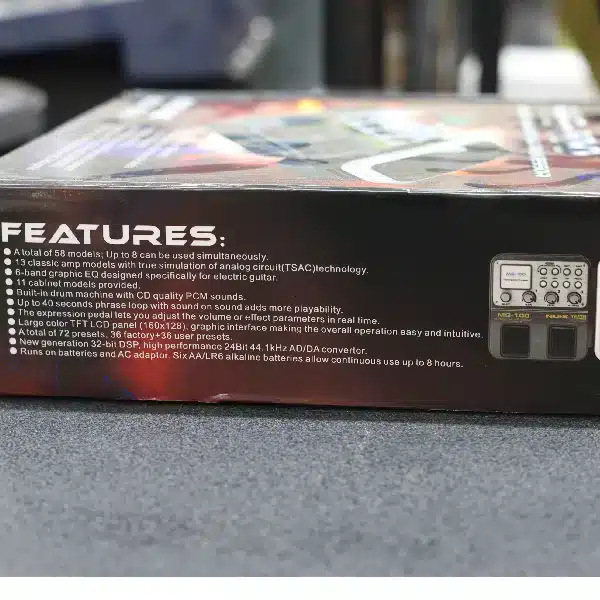

• 58 types of effect, up to 8 types can be used simultaneously.
• 13 classic amp models with True Simulation of Analog Circuit(TSAC) Cherub’s TS/AC technology.
• Vintage 3-band passive EQ modeling for every amp model.
• 6-band graphic EQ designed specifically for electric guitar(120Hz,250Hz,750Hz,1.6kHz,3.2kHz,6.4kHz).
• 11 cabinet models.

Wide Range of Effects

• Amp Models: The MG100 features 13 classic amp models that emulate the sounds of iconic amplifiers. These models range from warm, vintage tones to modern high-gain settings, providing a diverse sonic palette for any genre.
• Effects: With 58 effects including modulation, delay, reverb, overdrive, and distortion, the MG100 allows guitarists to experiment with a variety of sounds and textures. Effects can be combined and tweaked to create unique and personalized tones.
• Cabinet Simulations: The pedal includes 11 cabinet simulations, offering the ability to mimic the sound of different speaker setups. This feature is especially useful for direct recording or playing through a PA system.

Intuitive User Interface

• LCD Display: The large, backlit LCD display provides clear and easy-to-read information, making it simple to navigate through the various settings and effects.
• Control Knobs: Dedicated control knobs for amp, drive, EQ, modulation, and ambience allow for quick and precise adjustments. The interface is designed to be intuitive, so users can focus on playing rather than tweaking settings.
• Footswitches: Two sturdy footswitches offer seamless control over the effects, allowing for easy switching between presets and effects during performances.

Live Performances

The NUX MG100 Effects Pedal is a powerful tool for live performances. Its wide range of effects and amp models allows guitarists to achieve a variety of tones, from clean and crisp to heavy and distorted. The intuitive interface and sturdy footswitches make it easy to switch between presets and effects on stage, while the expression pedal adds a dynamic element to your playing. The pedal’s robust build ensures it can handle the demands of live performances, providing reliable and consistent sound quality.

Studio Recording

In the studio, the MG100 shines with its extensive array of effects and amp simulations. The USB connectivity allows for easy integration with recording software, making it simple to capture high-quality guitar tones directly into your DAW. The cabinet simulations provide a realistic representation of different speaker setups, enhancing the authenticity of your recordings. Whether you’re recording clean rhythms, crunchy riffs, or soaring solos, the MG100 delivers professional-grade sound.

Practice and Learning

For practice and learning, the MG100 offers several features that aid in skill development. The built-in looper is perfect for practicing solos and improvisations, while the wide range of effects allows players to experiment with different sounds and techniques. The headphone output ensures that you can practice silently without disturbing others, and the auxiliary input lets you play along with backing tracks or your favorite songs. The integrated tuner ensures that your guitar is always in tune, making practice sessions more productive.

The NUX MG100 Effects Pedal is a versatile and powerful tool that offers exceptional value for money. With its wide range of effects, amp models, and user-friendly interface, it is suitable for various musical applications, from live performances and studio recording to practice and learning. Invest in the NUX MG100 Effects Pedal to experience the perfect blend of performance, quality, and affordability.
