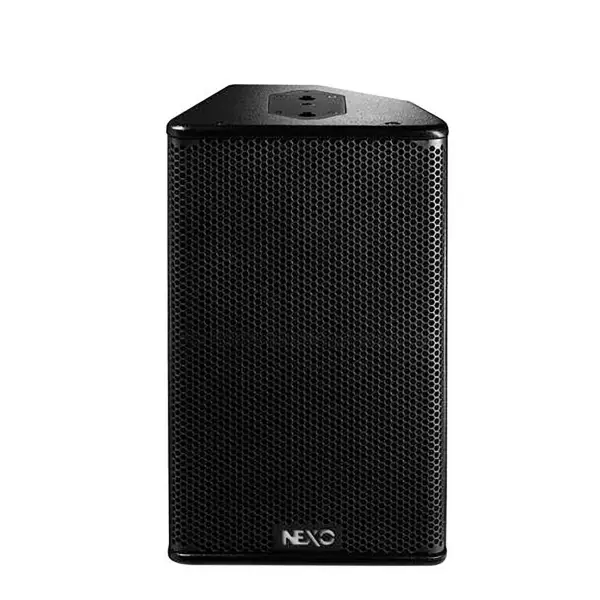

Nexo PS 10 Midrange Speaker
Nexo PS10 Midrange Speaker
Nexo PS10 midrange speaker is a loudspeaker easily accessible in the Kenyan market and can drive up to 2000W of pure amplifier power! High SPLs and wide bandwidth performance are achieved, despite the fact that this speaker is half the weight and volume of standard trapezoidal loudspeaker systems. The 10-inch low frequency driver and the three-inch high frequency driver send out smooth sound. Flexible coverage patterns are due in part to Nexo’s constant directivity asymmetrical dispersion horn behind the grille.
KSh 20,000.00
Out of stock
Nexo PS 10 Midrange Speaker
Nexo PS10 Midrange Speaker can be safely driven with over 500 Watts of amplifier power, yet it is only half the weight and volume of standard trapezoidal systems.

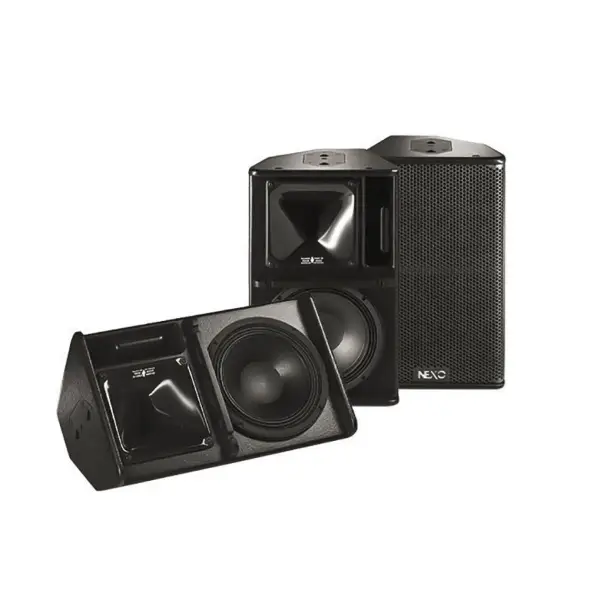

The dispersion, architecture and weight balance of the PS10 Loudspeaker are designed to provide both exceptional PA and stage monitor performance from a single product without compromise.
Affordable
The 2-way passive 8 Ohm design uses a single amplifier channel to deliver bi-amped performance for less money, space and complexity.
Flexibility

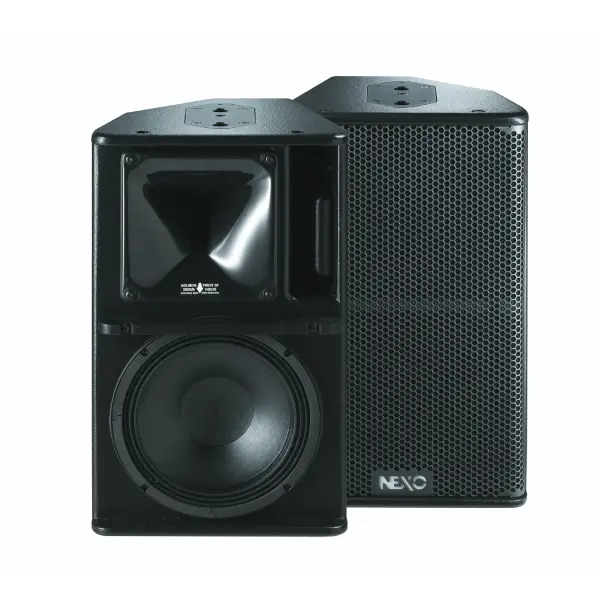

This flexibility is realized by a proprietary constant directivity asymmetrical dispersion horn, easily rotated in four positions by the user. Coupled with the horn’s unique progressive horizontal (50° to 100°) and vertical (55°) dispersion, the most suitable pattern can be selected for vertical or horizontal PA usage or wedge monitoring.
Compact, Midrange loudspeaker
The Nexo PS10 Midrange Speaker System is the foundation of Nexo’s acclaimed PS Series; versatile, compact, midrange loudspeakers tailored for a wide range of touring and installed sound reinforcement applications. Like all Nexo products, the PS10 Loudspeaker and optional LS500 Subwoofer are designed to work with advanced electronic processors, guaranteeing consistent performance and reliability of the highest standard.
They are great church speakers. Order yours at affordable prices at our stores available in Nairobi Kenya
Specifications
| LF Components | 1 x 10″ (25 cm) 8 Ohm driver |
| HF Components | 1 x 1″ throat driver + Low Distortion, Constant Directivity Asymmetrical Dispersion Horn. |
| Dimensions Height x Width x Depth | 515 x 316 x 277 mm (20.25″ x 12.5″ x 10.88″) |
| Weight | 15 kg (33 lbs) |
| Connectors | 2 x NL4MP SPEAKON 4 pole |
| Construction | Baltic Birch Ply finished with textured, polyurethane black coating |
| Fittings: Handles | 2, integral to the cabinet |
| Front finish | Acoustic foam on perforated steel grille (77% transparent) |
| Flying Points & Fixed Installation | 1 steel anchor point for flying track on top (6 positions) 2 steel anchor plates for flying track on the bottom (1 position) |
| Stand fittings | Built-in Stand Fitting, 35mm (1 3/8″) |
| Frequency Response [a] | ;65 Hz – 20 kHz ±3dB (40 Hz – 20 kHz ±3dB with LS500 Subwoofer) |
| Usable Range @-6dB [a] | 58 Hz – 21 kHz (38 Hz – 21 kHz with LS500 Subwoofer) |
| Sensitivity 1W @ 1m [b | 98 dB SPL Nominal – 96 dB SPL Wideband |
| Nominal Peak SPL @ 1m [b] | 124 to 127dB Peak (for 200 to 500 W RMS Amp.) |
| HF Dispersion [c] | 50° to 100° Hor. x 55° Vert. Rotatable Horn, 4 positions |
| Directivity : Q & DI [c] | Q: 16 Nominal DI: 12 dB Nominal ( f 3 kHz ) |
| Crossover Frequencies | 2 kHz Passive |
| Nominal Impedance | 8 Ohms |
| Recommended Amplifiers | 200 to 500 Watts into 8 Ohms for 1 x PS10; 400 to 1000 Watts into 4 Ohms for 2 x PS10 per channel |
| Electronic Controller | The PS10 Loudspeaker must be used with a Nexo Controller (PS10 TD analogue, NX241 digital or PS10AMP integrated power amplifier). Use without a properly connected Controller will result in poor sound quality and may damage the components. |
| Dispersion configuration | After removing the quick-release front grille, the HF Horn can be rotated to one of 4 positions for dispersion configuration. |
| Subbass | The PS10 Loudspeaker can be used with or without the optional LS500 Subwoofer. Active two-way operation with the LS500 is included in the PS10TD, NX241 or PS10AMP. One LS500 matches 2 x PS10, additional LS500 may be used for enhanced effect. |
| Speaker Cables | The PS10 is wired 2- & 2+ on Speakon connectors, LS500 on 1- & 1+. Loop through Speakons is present on both products. Single identical cables can thus be used to loop through combinations of up to 2 x PS10 & 1 x LS500 in no particular order. |
| Weight & Volume | 2 x PS.10U = 34 kg (75.1 lbs) 0.169 cu m (5.96 cu ft) |
